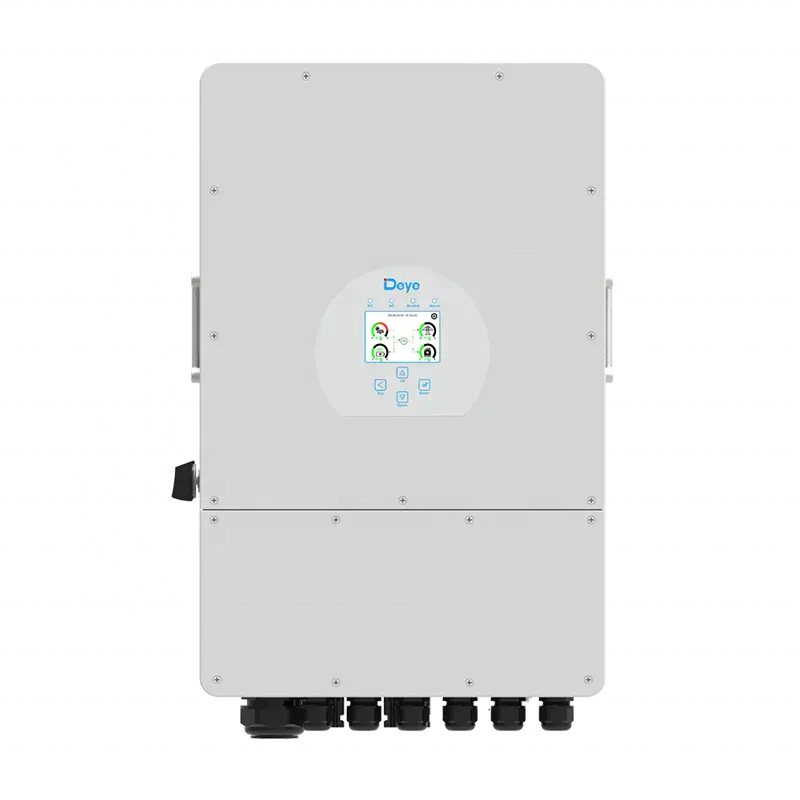

Ningbo Deye Solar Hybrid Inverter for 10Kva Solar System

Description

The Ningbo Deye SUN-5-12k-SG01HP3-EU is a highly versatile hybrid solar inverter available in capacities from 5kW to 12kW, supporting single, dual, triple, quad, multiple, and three-phase output configurations to accommodate a wide range of installation types. With an exceptional inverter efficiency of 99.9% and a broad MPPT voltage range of 150–850V, it maximizes solar energy harvesting from diverse panel configurations and varying sunlight conditions. The 230VAC (±5%) output with auto 50Hz/60Hz switching ensures compatibility with a broad spectrum of residential and commercial electrical systems worldwide.

Built to the stringent IP66 protection standard and designed with lithium-ion battery compatibility at its core, the Deye SUN-SG01HP3-EU delivers reliable performance in outdoor and challenging operating environments. Dual communication channels — WiFi and RS485 — enable comprehensive remote monitoring and control from a smartphone or building management system. Weighing just 32kg in a compact 400 × 638 × 237mm form factor, this inverter is easy to install and well-suited for 10kVA solar systems targeting high self-consumption rates and reduced grid dependency.

• Available in 5kW–12kW with single to multi-phase output support
• 99.9% inverter efficiency for maximum solar energy utilization
• Wide MPPT voltage range: 150–850V for versatile solar array configurations
• 230VAC output with auto 50Hz/60Hz frequency switching
• IP66 protection rating for outdoor and harsh environments
• WiFi and RS485 communication for remote monitoring and control
• Compatible with lithium-ion battery systems
• Compact design: 400×638×237mm, 32kg for easy wall-mounted installation
