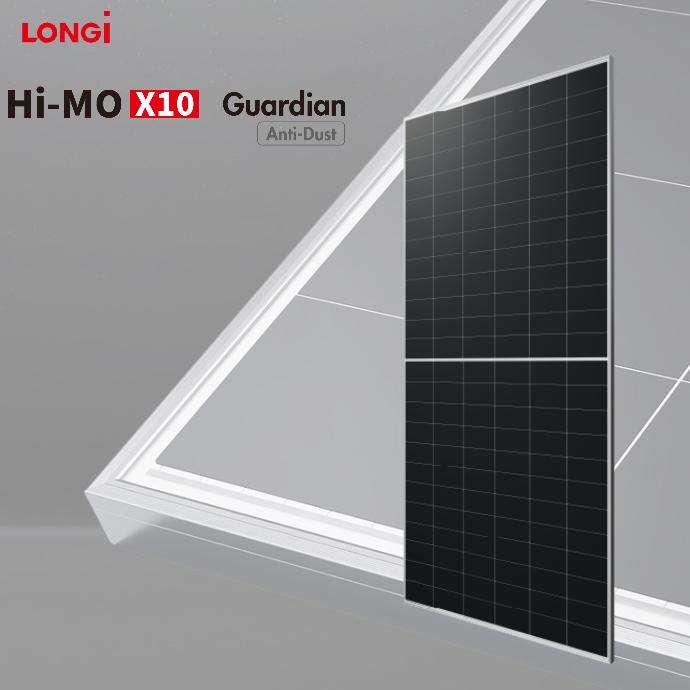

New LONGI Hi-MO X10 Guardian

Description

The new LONGi Hi-MO X10 Guardian (LR7-72HVDF 640-665M) is a flagship bifacial solar module built on advanced N-Type TOPCon cell technology, delivering a class-leading panel efficiency of 24.6% with 640W–665W power output. Featuring 182×192mm cells in a half-cell, double-glass configuration with 2.0mm semi-tempered glass on both sides, the Guardian is engineered for high energy yield, long-term reliability, and outstanding performance across residential, commercial, and utility-scale solar installations. With a power output tolerance of 0 to +3%, every panel delivers at or above its nameplate rating from day one.

Manufactured in Anhui, China by LONGi, the Hi-MO X10 Guardian features an anodized aluminium alloy frame, an IP68-rated junction box with three bypass diodes, and supports a maximum system voltage of DC1500V (IEC/UL) with a 30A series fuse rating and Class II protection. The module operates reliably across an extreme temperature range of -40°C to +85°C, making it ideally suited for diverse climates worldwide. Measuring 2382×1134×30mm and weighing 33.5kg, the Guardian ships at 35pcs per pallet, 140pcs per 20’GP, or 700pcs per 40’HC for efficient logistics on projects of any scale.

• 640W–665W output with 24.6% panel efficiency
• N-Type TOPCon bifacial half-cell technology with 182×192mm cells
• Double-glass design with 2.0mm semi-tempered glass
• Anodized aluminium alloy frame; IP68 junction box with 3 diodes
• DC1500V (IEC/UL) max system voltage; 30A max series fuse rating
• Class II protection; operates from -40°C to +85°C
• Panel size: 2382×1134×30mm; weight: 33.5kg; tolerance: 0 to +3%
• Packaging: 35pcs/pallet, 140pcs per 20’GP, 700pcs per 40’HC
